About DVB Technologies

Digital Video Broadcasting (DVB) is a suite of internationally accepted open standards for digital television. DVB standards are maintained by the DVB Project, an international industry consortium with more than 270 members, and they are published by a Joint Technical Committee (JTC) of European Telecommunications Standards Institute (ETSI), European Committee for Electrotechnical Standardization (CENELEC) and European Broadcasting Union (EBU). The interaction of the DVB sub-standards is described in the DVB Cookbook. Many aspects of DVB are patented, including elements of the MPEG video coding and audio coding.

Transmission:

DVB systems distribute data using a variety of approaches, including by satellite (DVB-S, DVB-S2 and DVB-SH; also DVB-SMATV for distribution via SMATV); cable (DVB-C); terrestrial television (DVB-T, DVB-T2) and digital terrestrial television for handhelds (DVB-H,DVB-SH); and via microwave using DTT (DVB-MT), the MMDS (DVB-MC), and/or MVDS standards (DVB-MS).

These standards define the physical layer and data link layer of the distribution system. Devices interact with the physical layer via a synchronous parallel interface (SPI), synchronous serial interface (SSI), or asynchronous serial interface (ASI). All data is transmitted in MPEG-2 transport streams with some additional constraints (DVB-MPEG). A standard for temporally-compressed distribution to mobile devices (DVB-H) was published in November 2004.

These distribution systems differ mainly in the modulation schemes used and error correcting codes used, due to the different technical constraints. DVB-S (SHF) uses QPSK, 8PSK or 16-QAM. DVB-S2 uses QPSK, 8PSK, 16APSK or 32APSK, at the broadcasters decision. QPSK and 8PSK are the only versions regularly used. DVB-C (VHF/UHF) uses QAM: 16-QAM, 32-QAM, 64-QAM, 128-QAM or 256-QAM. Lastly, DVB-T (VHF/UHF) uses 16-QAM or 64-QAM (or QPSK) in combination with COFDM and can support hierarchical modulation.

The DVB-T2 specification was approved by the DVB Steering Board in June 2008 and sent to ETSI for adoption as a formal standard. ETSI is expected to publish the standard in July 2009.The DVB-T2 standard will give more-robust TV reception and increase the possible bit-rate by over 30% for single transmitters (as in the UK) and is expected to increase the max bit-rate by over 50% in large single-frequency networks (as in Germany, Sweden).

Content

Besides audio and video transmission, DVB also defines data connections (DVB-DATA - EN 301 192) with return channels (DVB-RC) for several media (DECT, GSM, PSTN/ISDN, satellite etc.) and protocols (DVB-IPTV: Internet Protocol; DVB-NPI: network protocol independent).Older technologies such as teletext (DVB-TXT) and vertical blanking interval data (DVB-VBI) are also supported by the standards to ease conversion. However, for many applications more advanced alternatives like DVB-SUB for sub-titling are available.

Encryption and metadata

The conditional access system (DVB-CA) defines a Common Scrambling Algorithm (DVB-CSA) and a physical Common Interface (DVB-CI) for accessing scrambled content. DVB-CA providers develop their wholly proprietary conditional access systems with reference to these specifications. Multiple simultaneous CA systems can be assigned to a scrambled DVB program stream providing operational and commercial flexibility for the service provider.

DVB is also developing a Content Protection and Copy Management system for protecting content after it has been received (DVB-CPCM), which is intended to allow flexible use of recorded content on a home network or beyond, while preventing unconstrained sharing on the Internet. DVB-CPCM has been the source of much controversy in the popular press and It is said that CPCM is the DVB's answer to the failed American Broadcast Flag.

DVB transports include metadata called Service Information (DVB-SI, ETSI EN 300 468, ETSI TR 101 211) that links the various elementary streams into coherent programs and provides human-readable descriptions for electronic program guides as well as for automatic searching and filtering.

Recently, DVB has adopted a profile of the metadata defined by the TV-Anytime Forum (DVB-TVA, ETSI TS 102323). This is an XML Schema based technology and the DVB profile is tailored for enhanced Personal Digital Recorders. DVB lately also started an activity to develop a service for IPTV (DVB-IPI, ETSI TR 102033, ETSI TS 102034, ETSI TS 102814) which also includes metadata definitions for a broadband content guide (DVB-BCG, ETSI TS 102 539).

Software platform

The DVB Multimedia Home Platform (DVB-MHP) defines a Java-based platform for the development of consumer video system applications. In addition to providing abstractions for many DVB and MPEG-2 concepts, it provides interfaces for other features like network card control, application download, and layered graphics.

Return channel

DVB has standardised a number of return channels that work together with DVB(-S/T/C) to create bi-directional communication. RCS is short for Return Channel Satellite, and specifies return channels in C, Ku and Ka frequency bands with return bandwidth of up to 2 Mbit/s. DVB-RCT is short for Return Channel Terrestrial, specified by ETSI EN 301958.



Satellite TV Solution

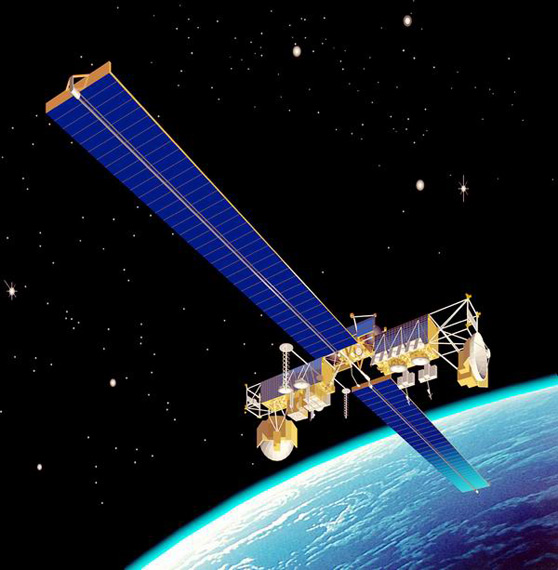

Satellite television is television delivered by the means of communications satellite and received by a satellite dish and set-top box. In many areas of the world it provides a wide range of channels and services, often to areas that are not serviced by terrestrial or cable providers.

Technology

Satellites used for television signals are generally in either naturally highly elliptical (with inclination of +/-63.4 degrees and orbital period of about 12 hours, also known as Molniya orbit) or geostationary orbit 37,000 km (22,300 miles) above the earth’s equator.

Satellite television, like other communications relayed by satellite, starts with a transmitting antenna located at an uplink facility. Uplink satellite dishes are very large, as much as 9 to 12 meters (30 to 40 feet) in diameter. The increased diameter results in more accurate aiming and increased signal strength at the satellite. The uplink dish is pointed toward a specific satellite and the uplinked signals are transmitted within a specific frequency range, so as to be received by one of the transponders tuned to that frequency range aboard that satellite. The transponder 'retransmits' the signals back to Earth but at a different frequency band (a process known as translation, used to avoid interference with the uplink signal), typically in the C-band (4–8 GHz) or Ku-band (12–18 GHz) or both. The leg of the signal path from the satellite to the receiving Earth station is called the downlink.

A typical satellite has up to 32 transponders for Ku-band and up to 24 for a C-band only satellite, or more for hybrid satellites. Typical transponders each have a bandwidth between 27 MHz and 50 MHz. Each geo-stationary C-band satellite needs to be spaced 2 degrees from the next satellite (to avoid interference). For Ku the spacing can be 1 degree. This means that there is an upper limit of 360/2 = 180 geostationary C-band satellites and 360/1 = 360 geostationary Ku-band satellites. C-band transmission is susceptible to terrestrial interference while Ku-band transmission is affected by rain (as water is an excellent absorber of microwaves at this particular frequency).

The downlinked satellite signal, quite weak after traveling the great distance (see inverse-square law), is collected by a parabolic receiving dish, which reflects the weak signal to the dish’s focal point. Mounted on brackets at the dish's focal point is a device called a feedhorn. This feedhorn is essentially the flared front-end of a section of waveguide that gathers the signals at or near the focal point and 'conducts' them to a probe or pickup connected to a low-noise block downconverter or LNB. The LNB amplifies the relatively weak signals, filters the block of frequencies in which the satellite TV signals are transmitted, and converts the block of frequencies to a lower frequency range in the L-band range. The evolution of LNBs was one of necessity and invention.

The original C-Band satellite TV systems used a Low Noise Amplifier connected to the feedhorn at the focal point of the dish. The amplified signal was then fed via very expensive 50 Ohm impedance coaxial cable to an indoor receiver or in other designs fed to a downconverter (a mixer and a voltage tuned oscillator with some filter circuitry) for downconversion to an intermediate frequency. The channel selection was controlled, typically by a voltage tuned oscillator with the tuning voltage being fed via a separate cable to the headend. But this simple design evolved.

Designs for microstrip based converters for Amateur Radio frequencies were adapted for the 4 GHz C-Band. Central to these designs was concept of block downconversion of a range of frequencies to a lower, and technologically more easily handled block of frequencies (intermediate frequency).

The advantages of using an LNB are that cheaper cable could be used to connect the indoor receiver with the satellite TV dish and LNB, and that the technology for handling the signal at L-Band and UHF was far cheaper than that for handling the signal at C-Band frequencies. The shift to cheaper technology from the 50 Ohm impedance cable and N-Connectors of the early C-Band systems to the cheaper 75 Ohm technology and F-Connectors allowed the early satellite TV receivers to use, what were in reality, modified UHF TV tuners which selected the satellite television channel for down conversion to another lower intermediate frequency centered on 70 MHz where it was demodulated. This shift allowed the satellite television DTH industry to change from being a largely hobbyist one where receivers were built in low numbers and complete systems were expensive (costing thousands of Dollars) to a far more commercial one of mass production.

Direct broadcast satellite dishes are fitted with an LNBF, which integrates the feedhorn with the LNB.

The satellite receiver demodulates and converts the signals to the desired form (outputs for television, audio, data, etc.). Sometimes, the receiver includes the capability to unscramble or decrypt; the receiver is then called an Integrated receiver/decoder or IRD. The cable connecting the receiver to the LNBF or LNB must be of the low loss type RG-6, quad shield RG-6 or RG-11, etc. It cannot be standard RG-59.

Standards

Analog television distributed via satellite is usually sent scrambled or unscrambled in NTSC, PAL, or SECAM television broadcast standards. The analog signal is frequency modulated and is converted from an FM signal to what is referred to as baseband. This baseband comprises the video signal and the audio subcarrier(s). The audio subcarrier is further demodulated to provide a raw audio signal.

If the signal is a digitized television signal or multiplex of signals, it is typically QPSK.

In general, digital television, including that transmitted via satellites, are generally based on open standards such as MPEG and DVB-S/S2.

DVB-S is the original Digital Video Broadcasting forward error coding and modulation standard for satellite television and dates from 1994, in its first release, while development lasted from 1993, to 1997. The first application was commercially available in France via Canal+, enabling digitally broadcast, satellite-delivered television to the public.

It is used via satellites serving every continent of the world. DVB-S is used in both MCPC and SCPC modes for broadcast network feeds, as well as for direct broadcast satellite services like Sky Digital (UK) via Astra in Europe, Dish Network and Globecast in the U.S. and Bell TV in Canada.

Digital Video Broadcasting - Satellite - Second Generation (DVB-S2) is an enhanced specification to replace the DVB-S standard, developed in 2003 and ratified by ETSI (EN 302307) in March 2005. The development of DVB-S2 coincided with the introduction of HDTV and H.264 (MPEG-4 AVC) video codecs.

The system allows transmission of one or more MPEG-2 or MPEG-4 audio/video streams , using QPSK or 8PSK or 16/32APSK (amplitude and phase shift keying) modulation with concatenated encoding.

DVB-S2 is based on the DVB-S standard which is used for satellite broadcasting, and the DVB-DSNG standard, which is used by mobile units for sending external footage back to television stations. Two new key features which were added to DVB-S are :

  • VCM (Variable Coding and Modulation) which optimizes the transmission parameters for various users.
  • Changing encoding parameters in real time (ACM, Adaptive Coding and Modulation)

The authors claim that the DVB-S2 performance gain over DVB-S is around 30%.

When the contribution of improvements in video compression is added, an (MPEG-4 AVC) HDTV service can now be delivered in the same capacity that supported an early DVB-S-MPEG-2 SDTV service only a decade before.

While the actual DVB-S standard only specifies physical link characteristics and framing, the overlaid transport stream delivered by DVB-S is mandated as MPEG-2, known as MPEG-TS.

The conditional access encryption/scrambling methods include BISS, Conax, Digicipher, Irdeto, Nagravision, PowerVu, Viaccess, Videocipher, and VideoGuard. Many conditional access systems have been compromised.
